X-175 Manhattan in Black

Finish Options:



Hollow body. A strikingly beautiful and musically exceptional guitar, the X-175 Manhattan is an outstanding example of professional Guild tone, responsiveness and versatility. With its gracefully sculpted and richly resonant hollow body, rock-solid three-piece neck and electrifying dual DE-1F single-coil pickups, it evokes the enchanting Guild Manhattan model of the 1950s and ’60s, marking the welcome return of a true Guild classic. Available in Antique Burst and Black.

List Price: $1,375

*This model is no longer in production. If you are interested in this model, please contact us or call +1 310-586-1180.

A Closer Look at the X-175 Manhattan

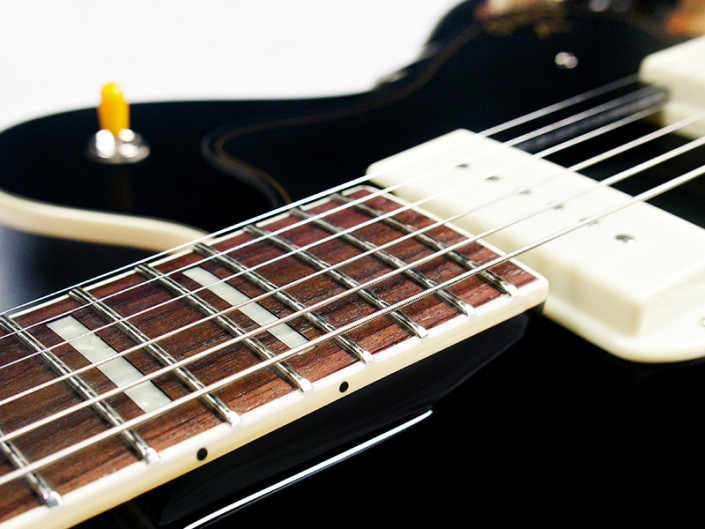

The Guild DE-1F Dog Ear single coil pickups have been offered in many electric guitars throughout Guild’s history. Originally known as “Frequency-Tested”, these P90-style pickups were manufactured by Franz in New York. The Newark St. DE-1F is a faithful reproduction offering the classic tone profile of the original.

Body:

Body ConstructionHollowbody
Body TopArched Laminated Spruce
Body BackArched Laminated Maple
Body SidesLaminated Maple
Body ShapeGuild® X-175
BracingParallel Tone Bars
FinishGloss Polyurethane, Black
Body Depth Upper Bout3″ (76 mm)
Body Depth Lower Bout3″ (76 mm)
Body Length21″ (533 mm)
Body Width Lower Bout17″ (432 mm)
Body Width Upper Bout12.5″ (318 mm)
Overall Guitar Length42″ (1067 mm)
Guitar Weight6.75 lbs
Body BindingIvory with Black/White Purfling
PurflingBlack/Ivory White
Soundhole/F Holes BindingUnbound F Holes

Neck:

Neck Material3-Piece Mahogany/Maple/Mahogany
Neck ShapeVintage Soft “U”
Neck FinishGloss Polyurethane
Scale Length24 3/4″ (628 mm)
Nut Width1 11/16″ (43 mm)
Nut MaterialBone
Neck Binding1-Ply Ivory White
Fingerboard MaterialIndian Rosewood
Fingerboard Radius9 1/2″ (240 mm)
Fingerboard InlaysPearloid Block
# of Frets20
Fret SizeNarrow Jumbo
Tuning MachinesGrover® Sta-Tite™ Open-Gear 18:1
Hardware Finish/PlatingNickel-Plated
Truss RodDual-Action
Truss Rod Wrench7mm Hex Truss Rod Wrench

Features:

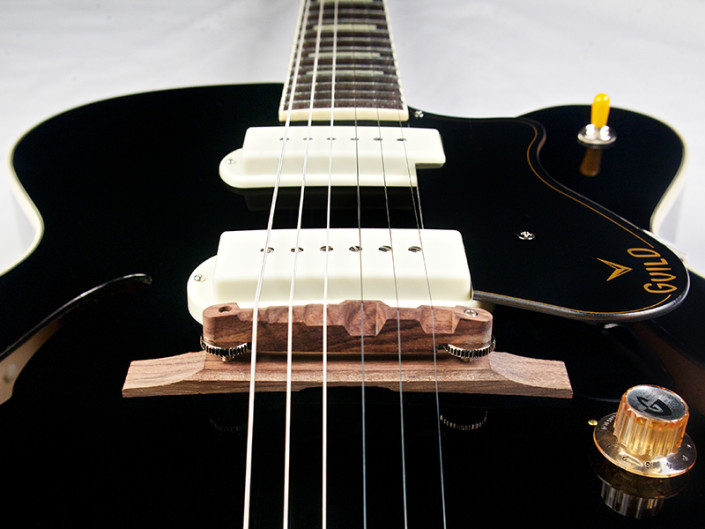

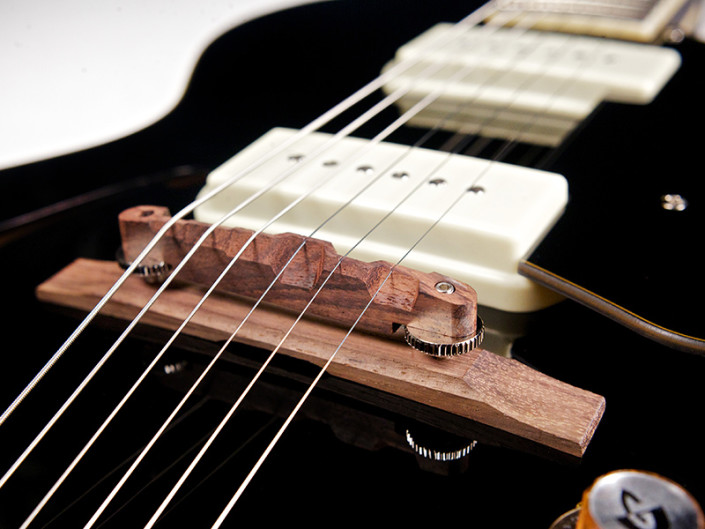

BridgeCompensated Rosewood with Rosewood Base
StringsD’Addario® EXL115 Nickel Wound, Medium/Blues-Jazz Rock, (.011-.049 Gauges)
Case or Gig BagTKL Deluxe Hardshell
Bridge PickupDE-1F
Neck PickupDE-1F
Pickup ConfigurationSS
Pickup Switches3-Position Toggle: Position 1. Bridge Pickup, Position 2. Bridge and Neck Pickups, Position 3. Neck Pickup

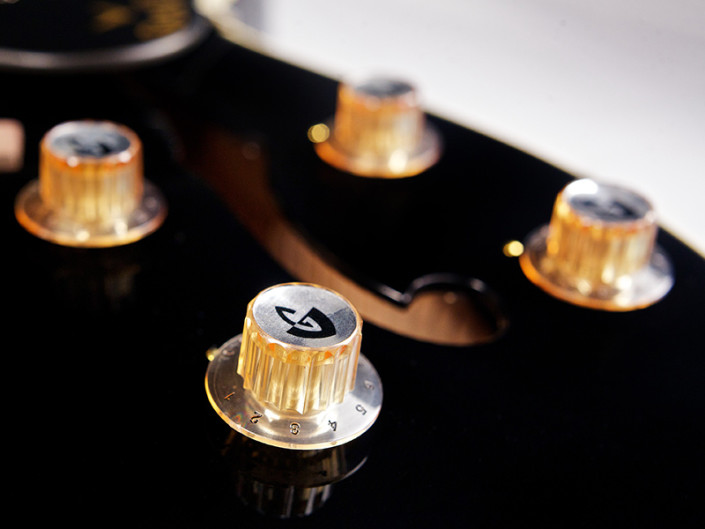

Control KnobsClear Amber Volume & Tone
ControlsVolume 1. (Neck Pickup), Tone 1. (Neck Pickup), Volume 2. (Bridge Pickup), Tone 2. (Bridge Pickup)
Strap ButtonsVintage-Style

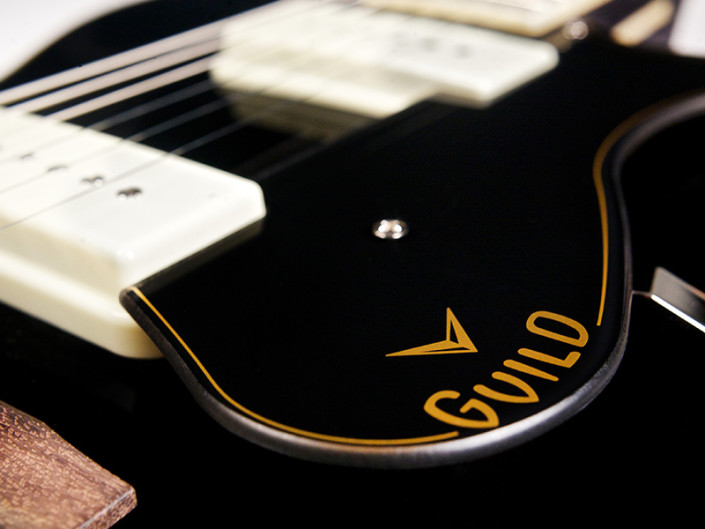

PickguardBlack with Guild® Logo
Item Number379‐5000‐806
